Aim

The aim of this study is to understand the working of a transistor as a switch and how it can be used to control the flow of current in a circuit.

Components Required

ComponentDescription
TransistorAny NPN or PNP transistor
ResistorAny value between 1kΩ to 10kΩ
LEDAny standard LED
Power SupplyAny DC power supply with voltage between 5V to 12V

Equipments Needed

  1. Breadboard
  2. Jumper Wires
  3. Multimeter

Theory

A transistor can be used as a switch to control the flow of current in a circuit. The transistor operates in two modes: cut-off and saturation. In the cut-off mode, the transistor acts as an open switch, and no current flows through the circuit. In saturation, the transistor acts as a closed switch, and maximum current flows through the circuit. By adjusting the current applied to the base terminal of the transistor, we can control the flow of current in the circuit.

Procedure

  1. Connect the transistor to the breadboard as per the circuit diagram.

  2. Connect the power supply to the circuit.

  3. Apply a small current to the base terminal of the transistor to observe the flow of current through the circuit.

  4. Increase the current applied to the base terminal and observe the effect on the flow of current through the circuit.

  5. Observe the effect of the resistance value on the flow of current through the circuit.

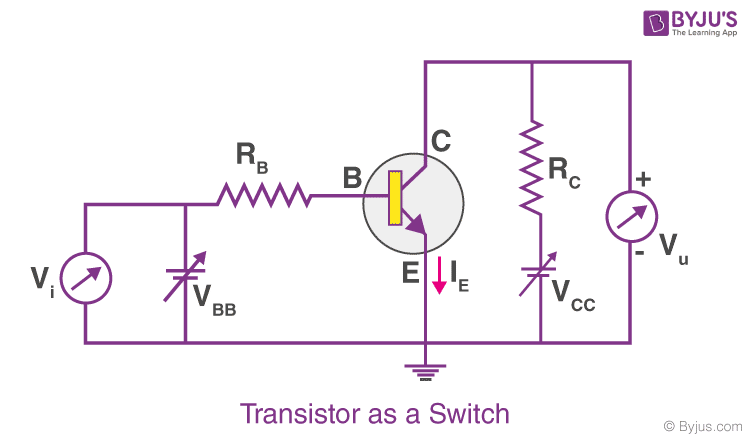

Circuit Diagram

Precautions

  • Use a transistor with a suitable voltage and current rating for the circuit.
  • Avoid applying excessive current to the base terminal of the transistor to prevent damage.
  • Observe proper wiring and connectivity in the circuit.
  • Use a suitable power supply with proper grounding to avoid any electrical shock.
  • Avoid exposing the circuit to high temperature or moisture.

Summary

In this study, we learned about the working of a transistor as a switch and how it can be used to control the flow of current in a circuit. By adjusting the base current, we can control the flow of current through the circuit.

Conclusion

The transistor is a versatile device that can be used as a switch in various electronic circuits. By understanding the basic principles of its operation, we can use it to design efficient and effective electronic circuits.
